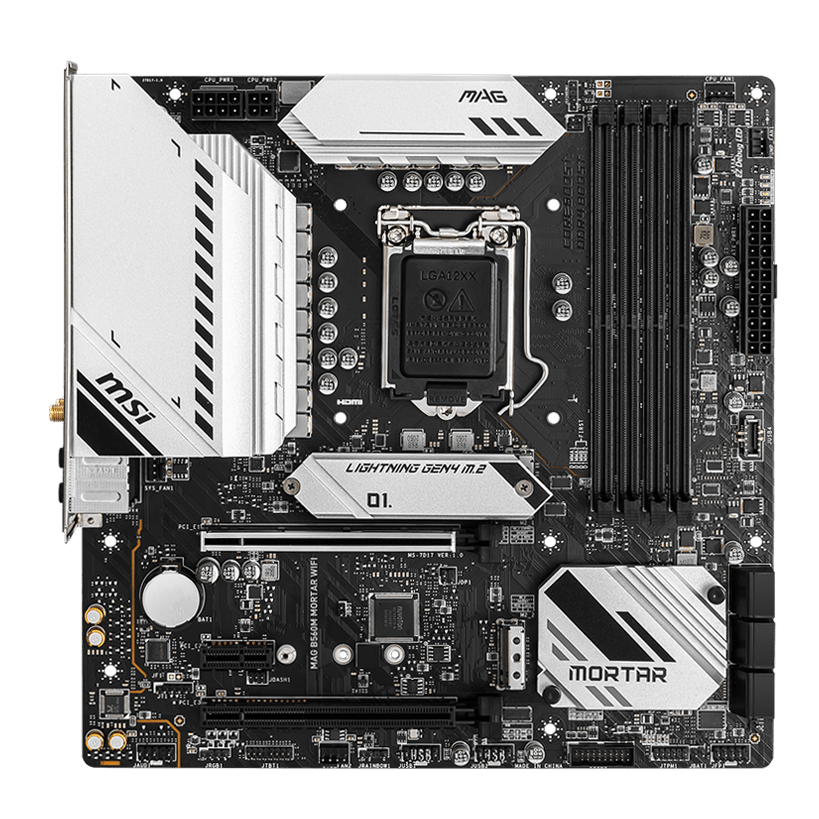

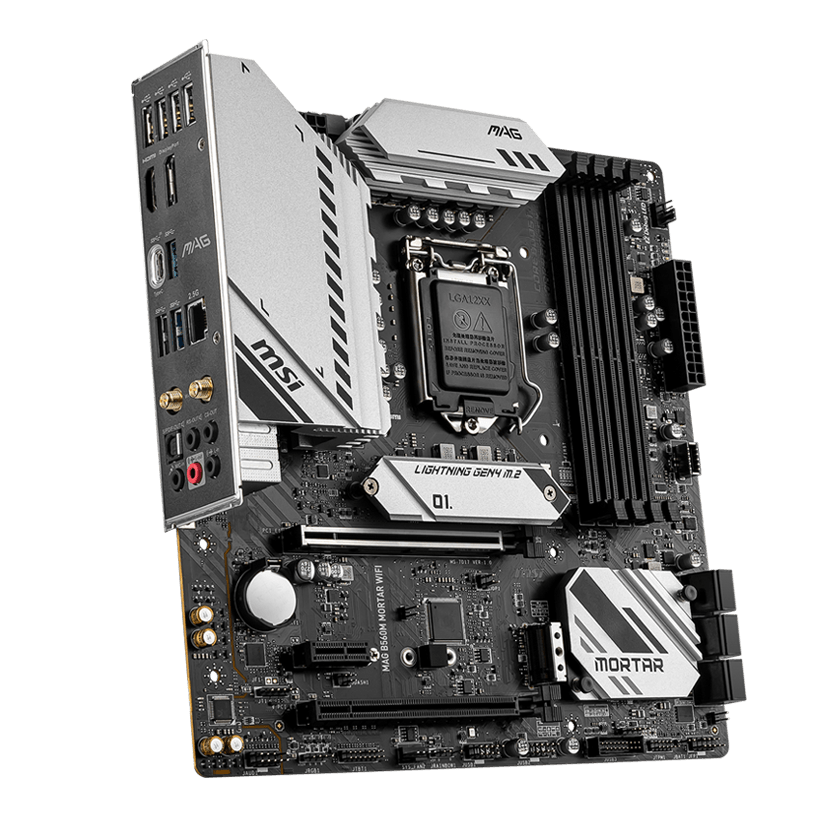

MSI MAG B560M MORTAR WIFI

Supports 10th Gen Intel^® Core^™ Processors, 11th Gen Intel^® Core^™ Processors, Pentium^® Gold and Celeron^® Processors

Processor socket LGA1200

• 4 x DDR4 memory slots, support up to 128GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5066+ MHz
    • 1DPC 2R Max speed up to 4600+ MHz
    • 2DPC 1R Max speed up to 4266+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

• 2x PCIe x16 slots
• Support x16/ x4
• PCI_E1 (from CPU)
• Support up to PCIe 4.0 for 11th Gen Intel^® CPU
• Support up to PCIe 3.0 for 10th Gen Intel^® CPU
• PCI_E3 (From B560 chipset)^[1]
• Support up to PCIe 3.0
• 1x PCIe 3.0 x1 slot
  • PCI_E2 (From B560 chipset)

1. PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz[1][2]
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz[1][2]

1. Available only on processors featuring integrated graphics

2. Graphics specifications may vary depending on the CPU installed.

• Supports 2-way AMD® CrossFire™ Technology

• 6x SATA 6Gb/s ports (from B560 chipset) ^[1]
• 2x M.2 slots (Key M)
  • M2_1 slot
    1. Supports up to PCIe 4.0 x4 for 11th Gen Intel^® CPU (From CPU)
    2. Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel^® CPU (From B560 chipset)^[1]
    3. Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (From B560 chipset)
    1. Supports up to PCIe 3.0x4
    2. Supports 2242/ 2260/ 2280 storage devices
    3. Intel® Optane™ Memory Ready^[2]
  • Supports Intel^® Smart Response Technology for Intel Core™ processors
• Supports Intel^® Smart Response Technology for Intel Core^™ processors

1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

2. Before using Intel^® Optane^™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Intel® B560 Chipset

• 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
• 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
• 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector
• 4x USB 2.0 ports on the back panel

USB Hubs ASM1074

• 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Hub-GL850G

• 4x USB 2.0 ports are available through the internal USB 2.0 connectors

Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

WIFI & BLUETOOTH

• Intel® Wi-Fi 6E AX210

• 1x Realtek® RTL8125B 2.5Gbps LAN controller

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 2x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x Tuning Controller Connector
• 1x TBT connector (Supports RTD3)

• USB 2.0 x4
• DisplayPort x1
• USB 3.2 Gen 1 5Gbps Type-A x3
• 2.5G LAN Port x1
• Wi-Fi / Bluetooth Antenna
• HD Audio Connectors
• HDMI x1

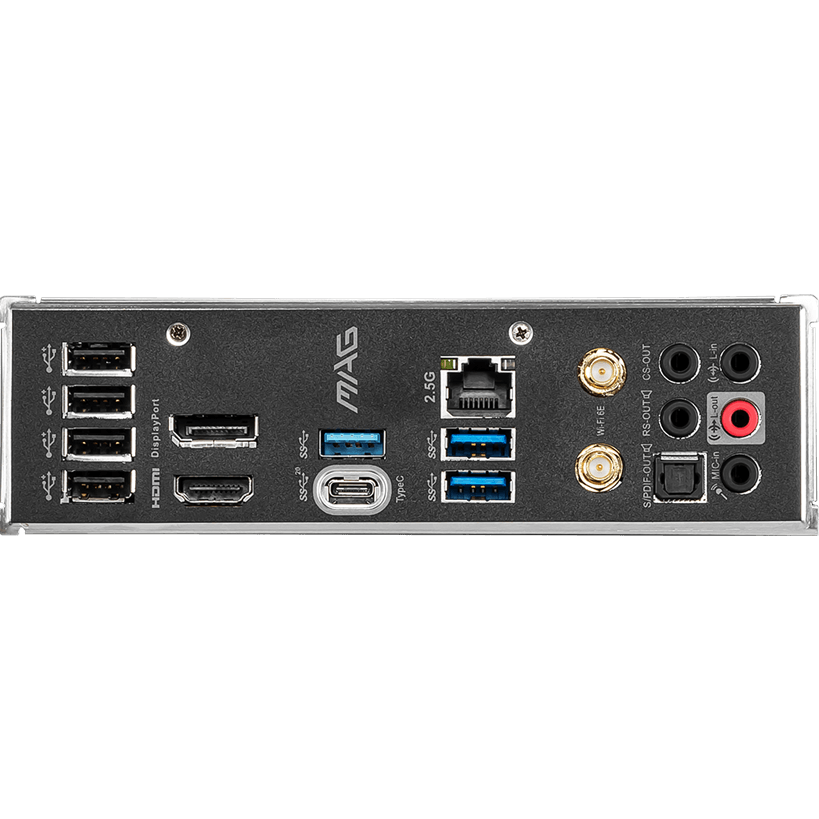

• USB 3.2 Gen 2x2 20Gbps Type-C x1
• Optical S/PDIF OUT

12

mATX

Hỗ trợ cho Windows® 10 64-bit
