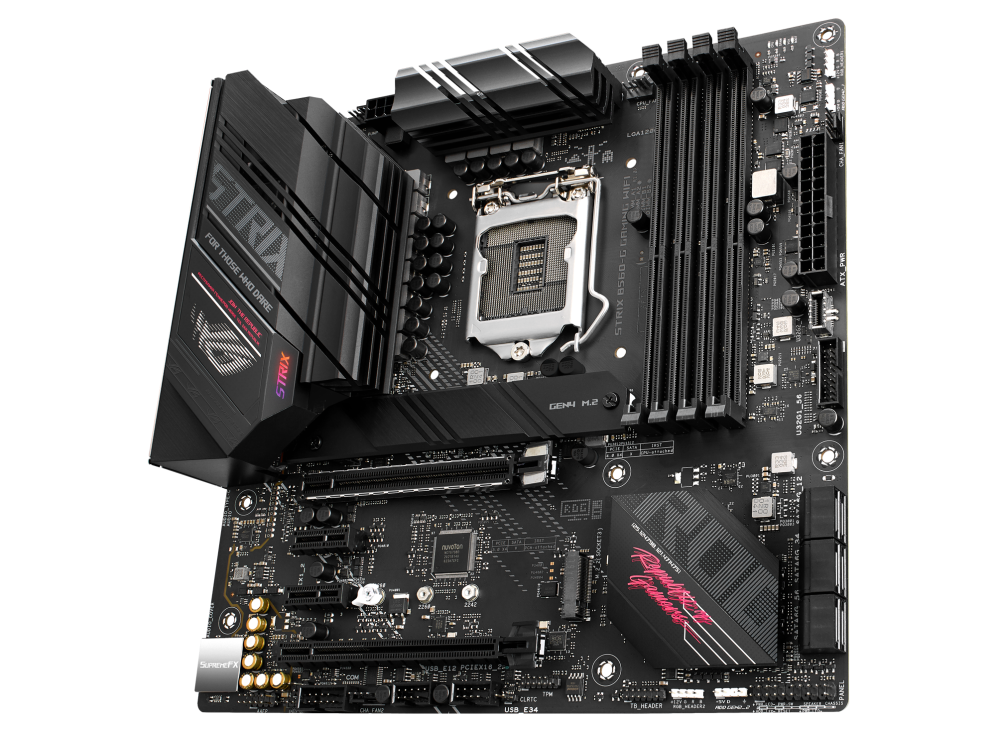

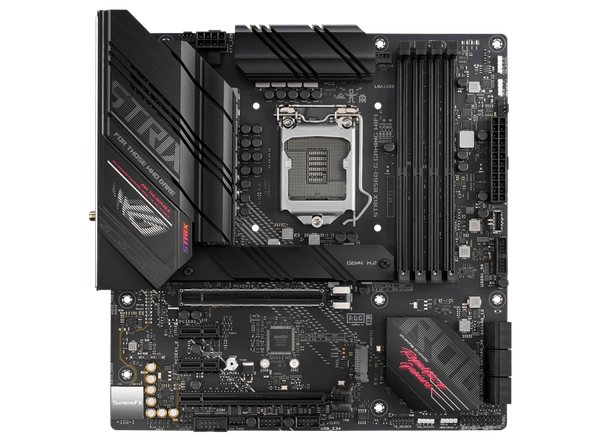

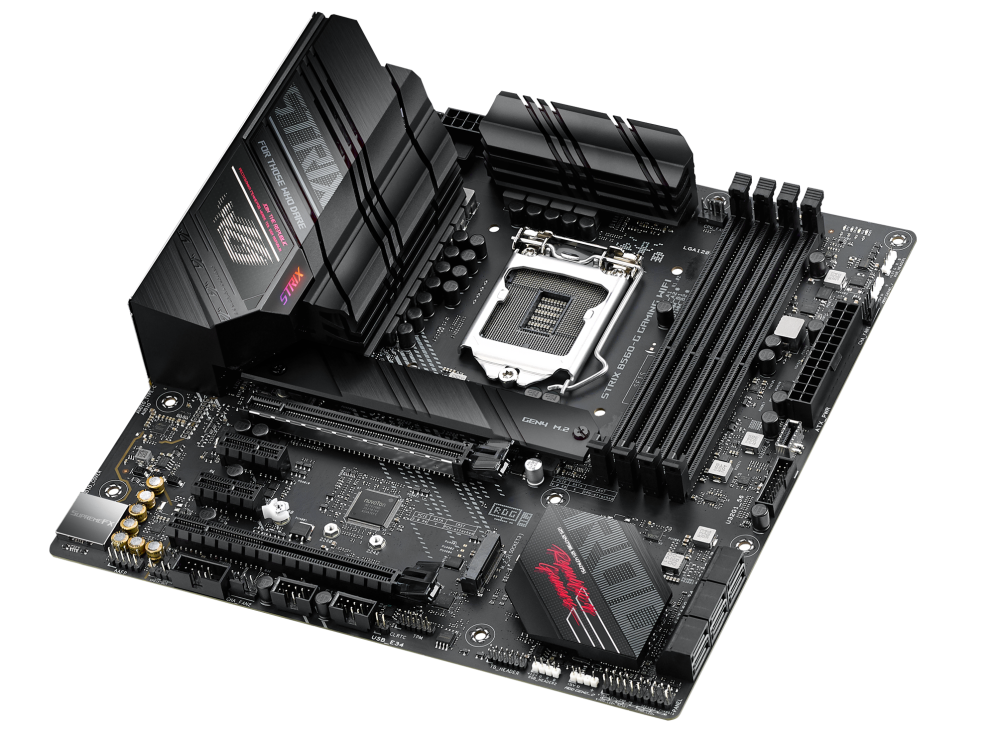

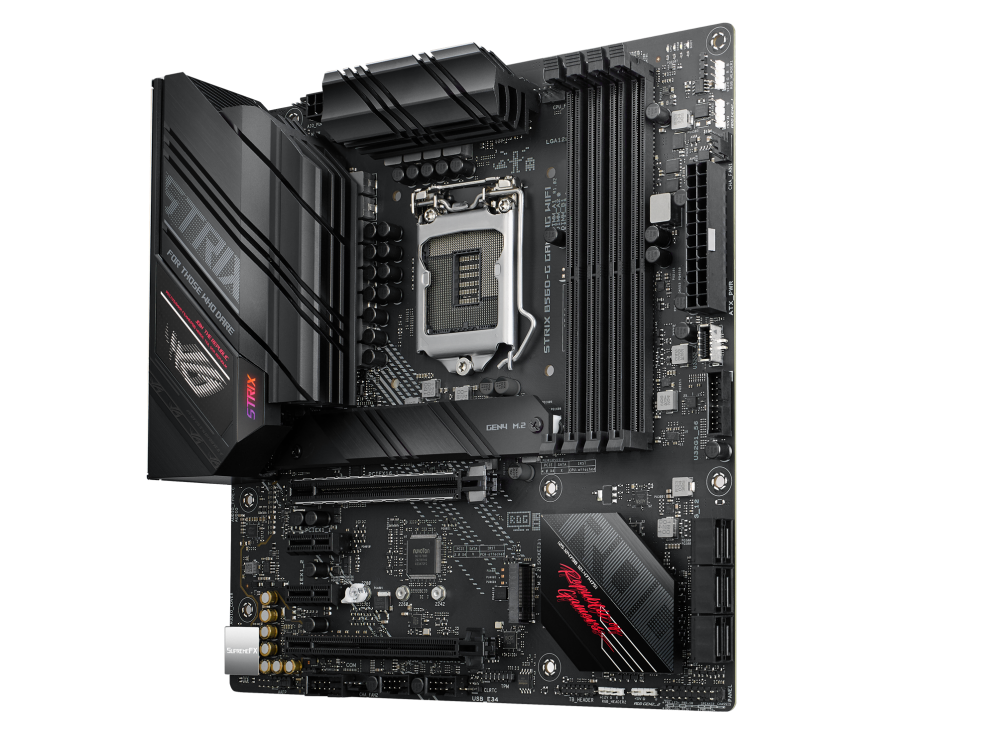

ASUS ROG STRIX B560-G GAMING WIFI

CPU:

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Memory:

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)
/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

1 x DisplayPort 1.4

1 x HDMI™ 2.0

Expansion Slots:

1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4)

Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot(s)

• Intel® 11th processors support PCIe 4.0 x16 mode
• Intel®10th processors support PCIe 3.0 x16 mode

Intel® B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

Storage:

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.

Intel® B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Intel Wi-Fi 6

USB:

Rear USB:Total 9 ports

• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
• 7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C®)

Front USB:Total 7 ports

• 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio:

S1220A

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback

Audio Features

• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear audio USB Type-C® port
• Premium Japanese audio capacitors
• Audio cover

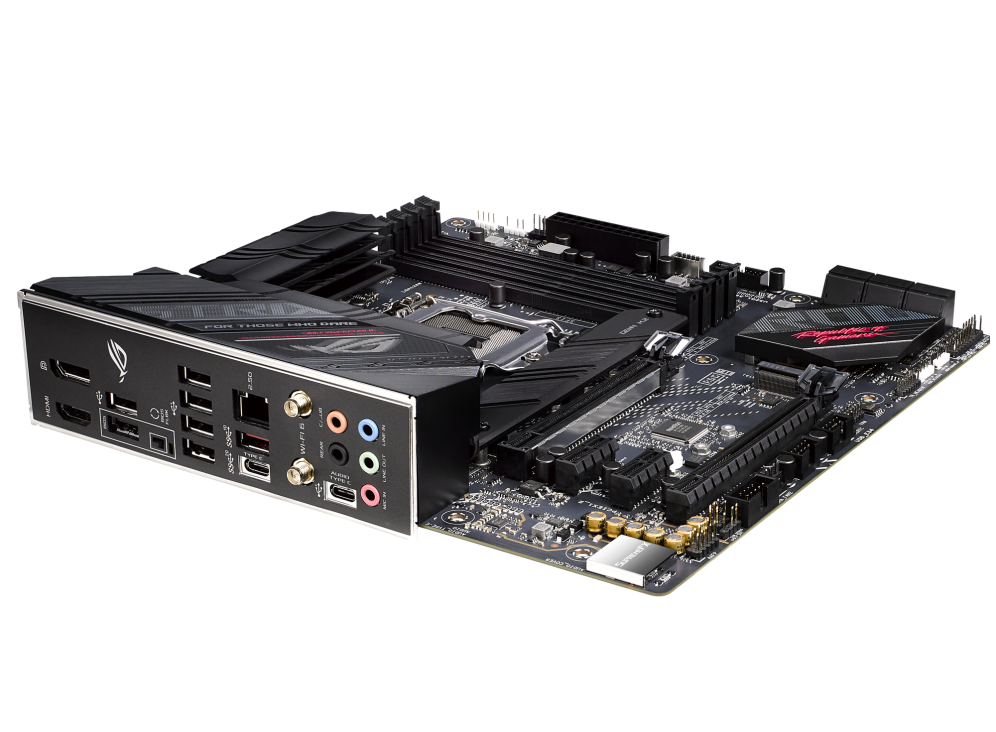

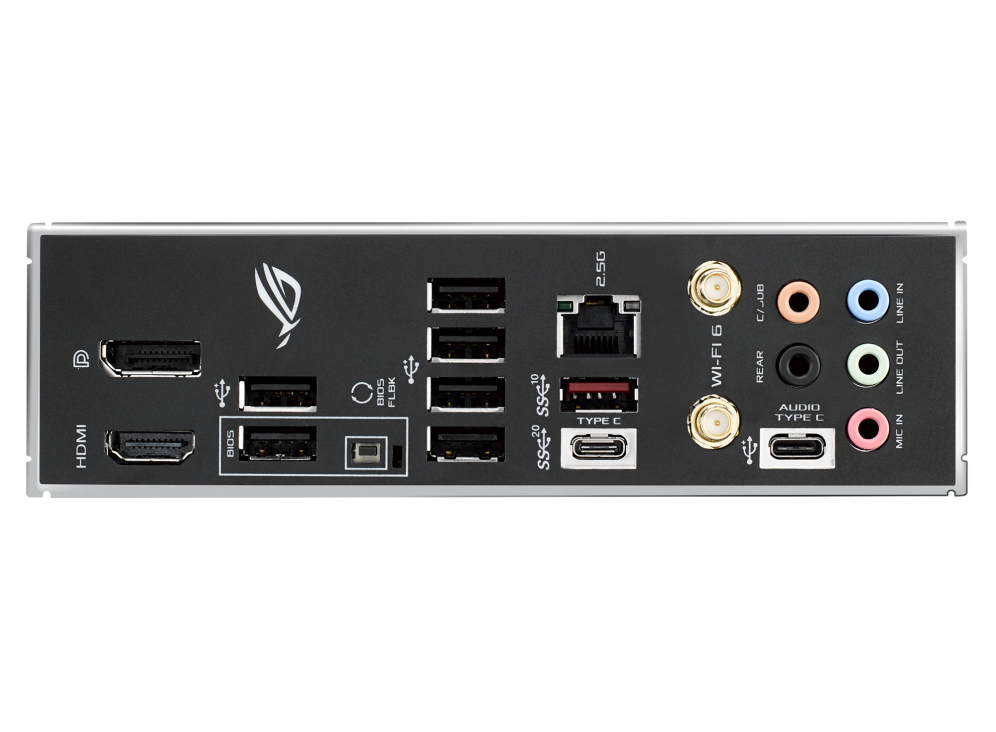

Back Panel I/O Ports:

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C®)

1 x HDMI™ port

1 x DisplayPort

1 x ASUS Wi-Fi Module

1 x Intel® I225-V 2.5Gb Ethernet

5 x Audio jacks

1 x BIOS FlashBack™ button

1 x Thunderbolt™ header

Special Features:

Extreme Engine Digi+

• 5K Black Metallic Capacitors

ASUS Q-Design

• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot

ASUS Thermal Solution

• M.2 heatsink

ASUS EZ DIY

• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• ProCool
• Pre-mounted I/O shield
• SafeSlot

AURA Sync

• AURA RGB header(s)
• Addressable Gen 2 RGB header(s)

Software Features:

ROG Exclusive Software

• RAMCache III
• ROG CPU-Z
• GameFirst VI
• Sonic Studio III + Sonic Studio Virtual Mixer
• Sonic Radar III
• DTS® Sound Unbound
• Overwolf
• Anti-virus software

ASUS Exclusive Software

• Armoury Crate
• AIDA64 Extreme (60 days free trial)
• AURA Creator
• AURA Sync
• Two-Way AI Noise Cancelation

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 4

- EZ update

DAEMON Tools

MyAsus

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

128 Mb Flash ROM, UEFI AMI BIOS

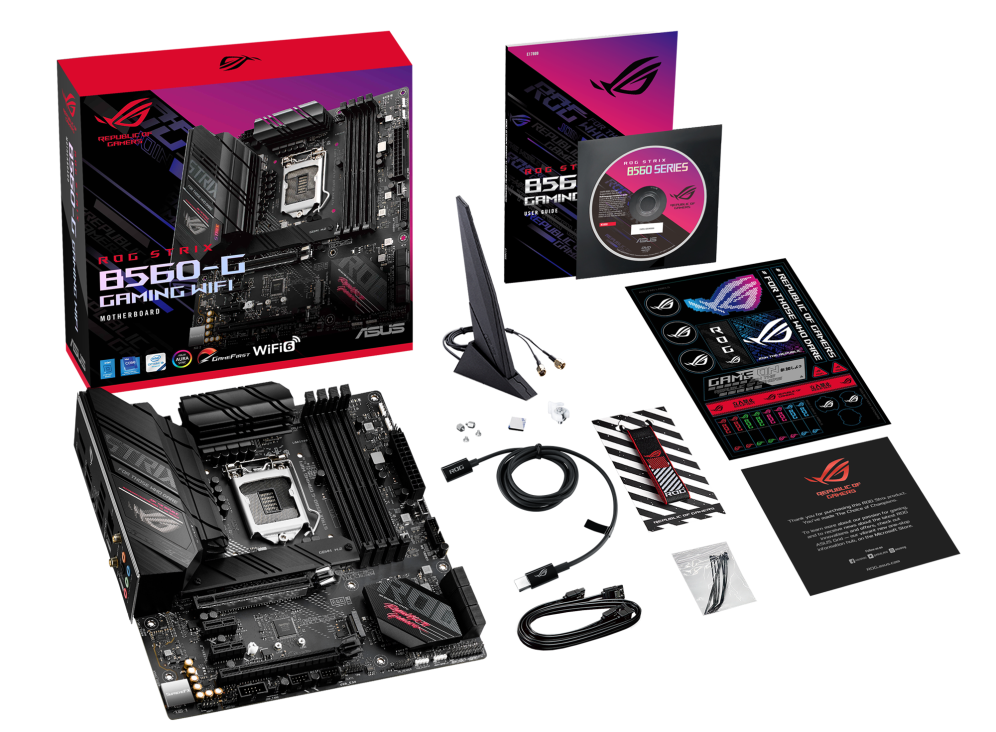

Accessories:

Cables

• 2 x SATA 6Gb/s cables
• 1 x ROG audio USB Type-C® cable

Miscellaneous

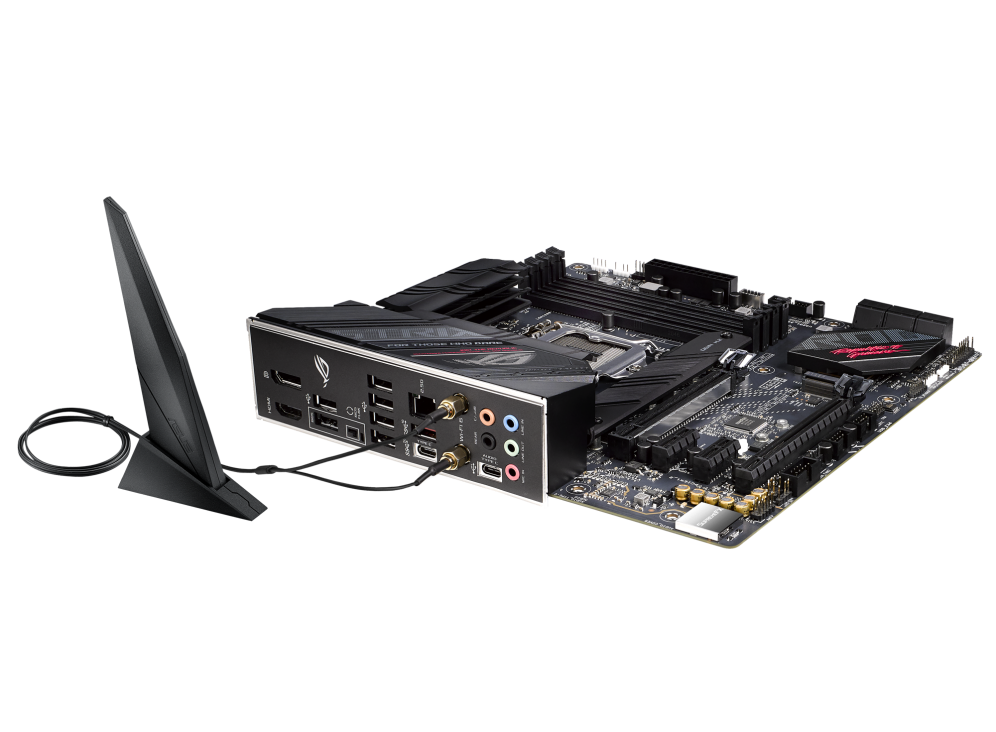

• 1 x ASUS WiFi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Q-Latch package
• 1 x M.2 Rubber Package
• 1 x M.2 SSD screw package
• 1 x ROG key chain
• 1 x ROG STRIX stickers
• 1 x ROG STRIX thank you card

Installation Media

• 1 x Support DVD

Documentation

• 1 x User manual

mATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
