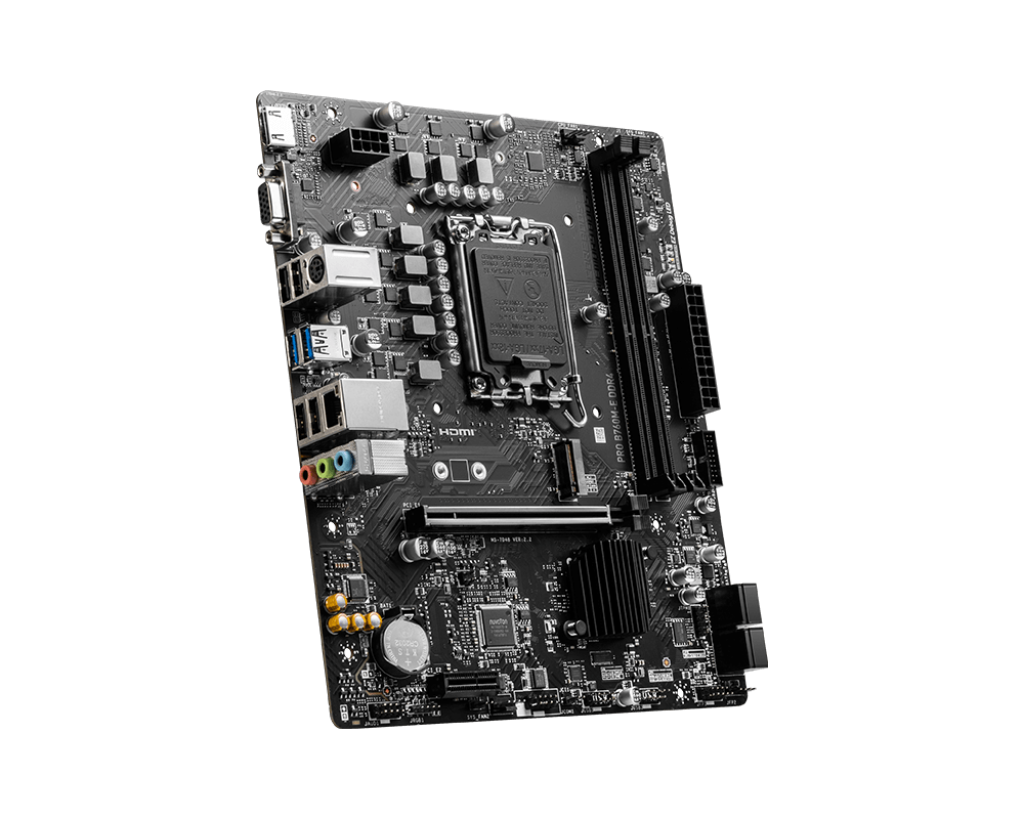

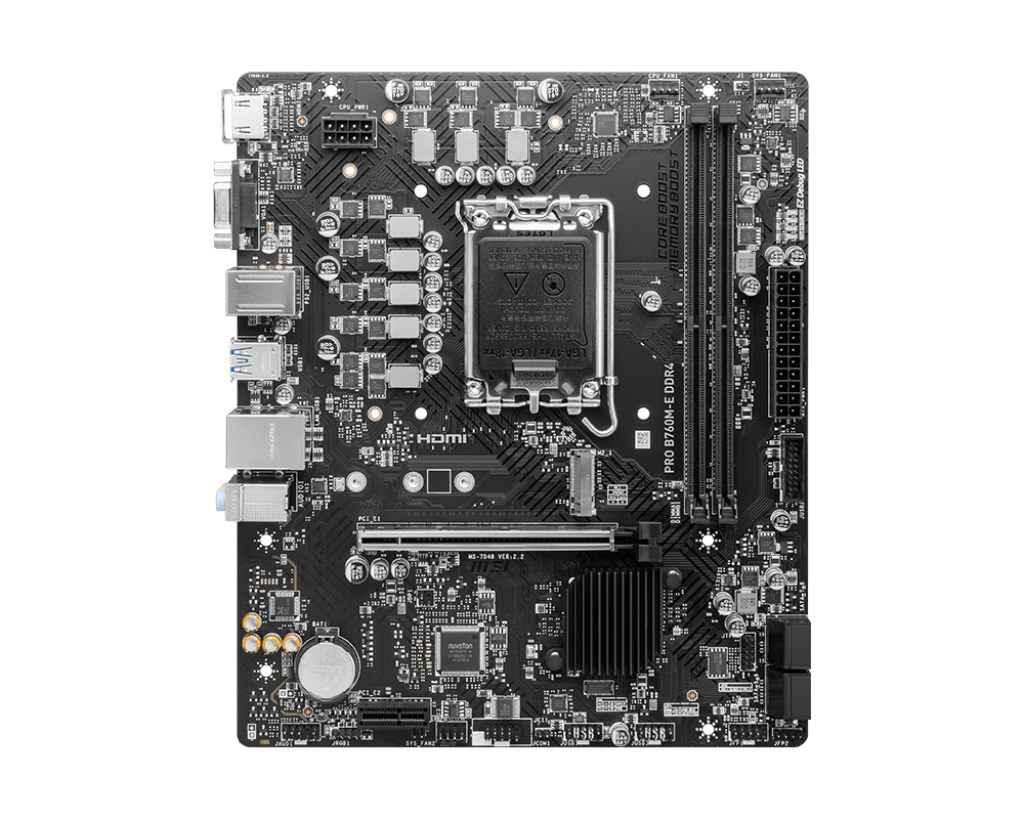

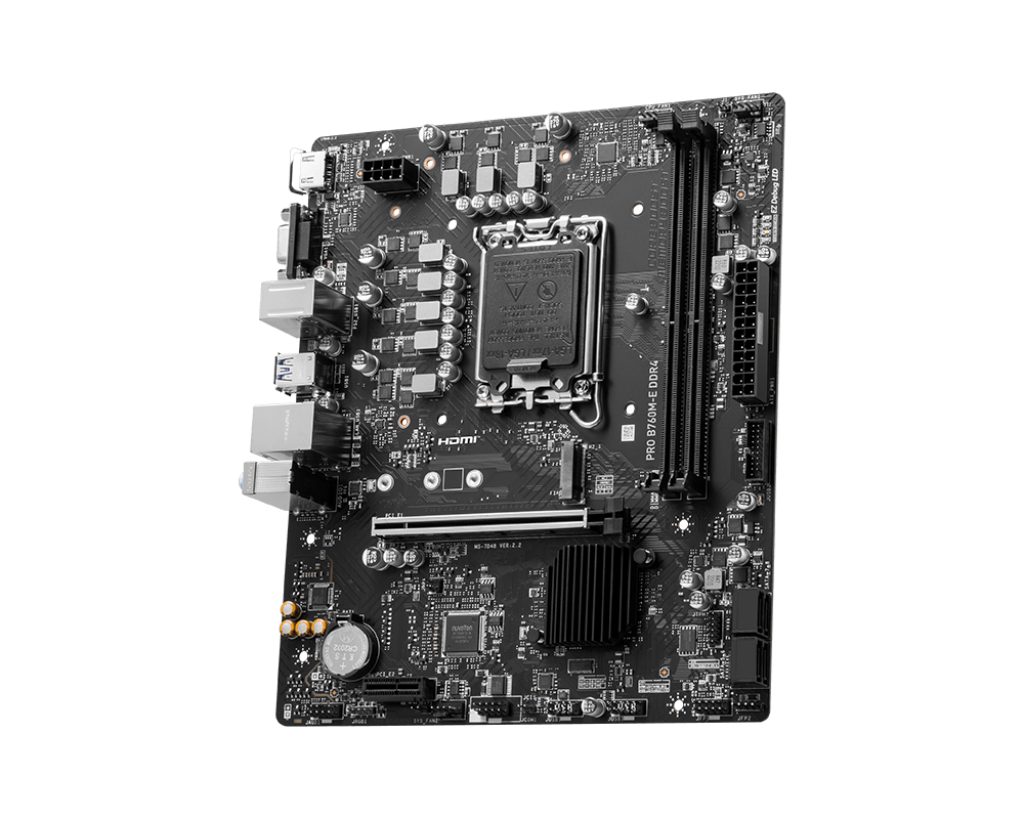

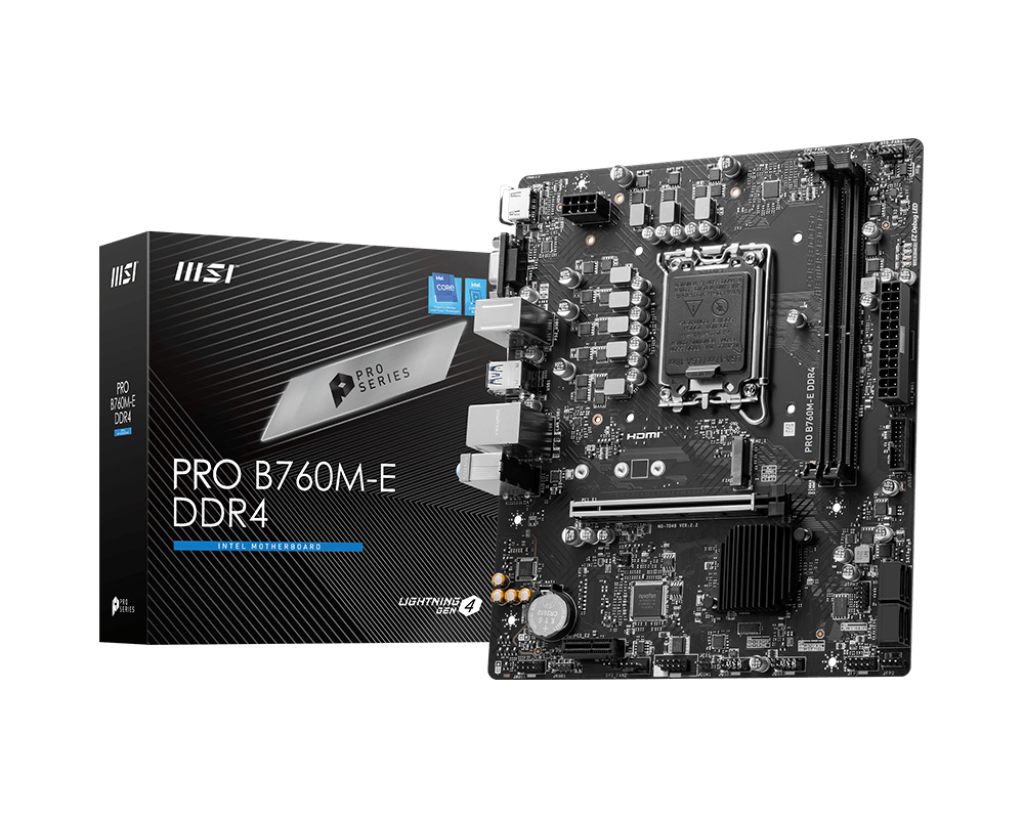

MAINBOARD MSI B760M-E PRO DDR4

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

PRO B760M-E DDR4

CPU hỗ trợ

Intel

Chipset

INTEL B760

RAM hỗ trợ

2x DDR4, Maximum Memory Capacity 64GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Khe cắm mở rộng

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to (From CPU)
PCI_E2 PCIe 3.0 supports up to (From Chipset)

Ổ cứng hỗ trợ

1x M.2 slot
M.2_1 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Cổng kết nối (Internal)

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0
1x USB 3.2 Gen1 Type A

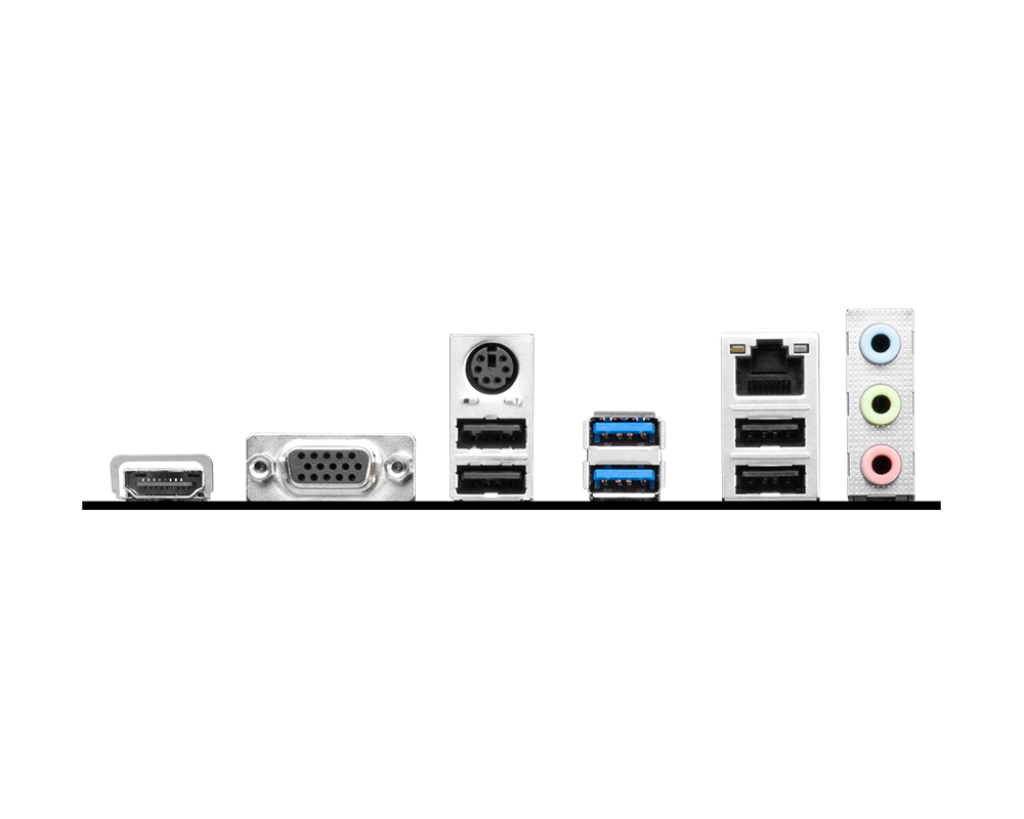

Cổng kết nối (Back Panel)

HDMI™
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio Connectors
USB 2.0
USB 2.0

LAN / Wireless

Realtek® RTL8111H Gigabit LAN

Kích cỡ

mATX
200mmx236.16mm
