CPU |
Hỗ trợ Bộ xử lý Intel Core, Pentium Gold và Celeron thế hệ thứ 12, 13.
Socket bộ xử lý LGA1700 |
|
Chipset |
Intel B760 |
|
Đồ họa |
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
* Chỉ khả dụng trên bộ xử lý có đồ họa tích hợp. Thông số kỹ thuật đồ họa có thể khác nhau tùy thuộc vào CPU được cài đặt. |
|
RAM |
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz |
|
Khe mở rộng |
5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
Lưu trữ |
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
|
LAN |
Realtek® RTL8125BG 2.5G LAN |
|
USB |
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear) |
|
Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output |
|
Kết nối nội bộ |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports |
|

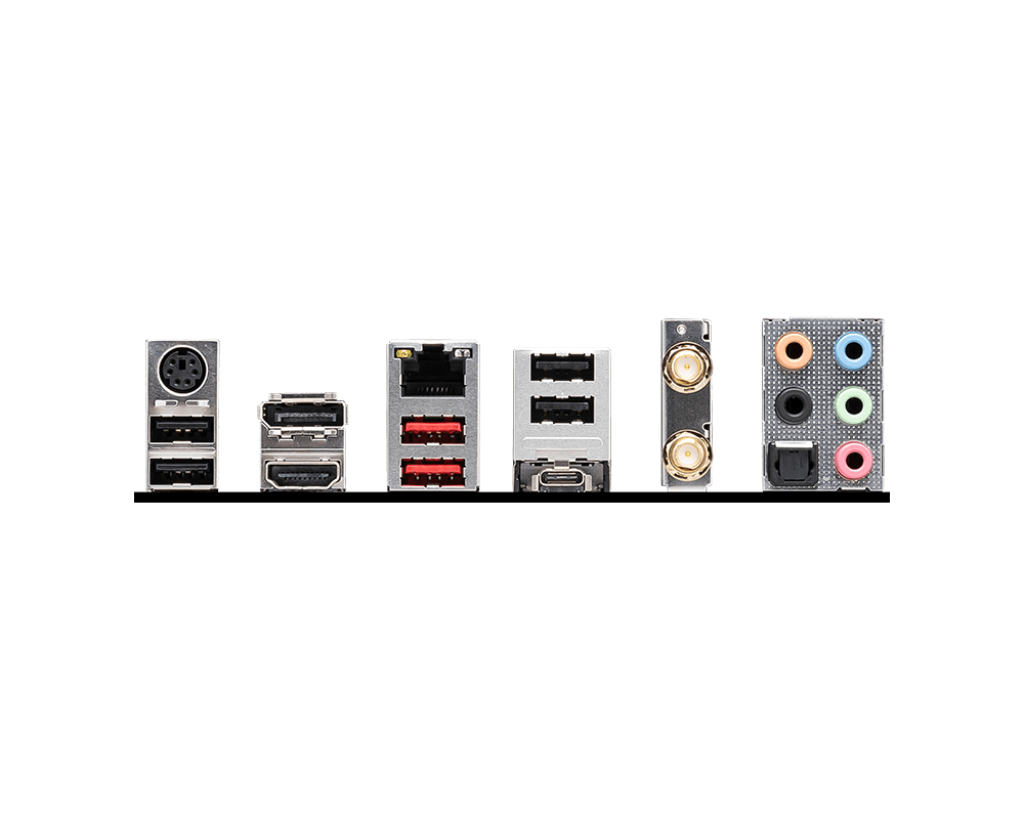

Cổng kết nối phía sau |
- Keyboard / Mouse
- DisplayPort
- 2.5G LAN
- USB 2.0
- Wi-Fi / Bluetooth
- Audio Connectors
- USB 2.0
- HDMI™
- USB 3.2 Gen 2 10Gbps (Type-A)
- USB 3.2 Gen 2 10Gbps (Type-C)
- S/PDIF-OUT
|
|
Kích thước |
ATX
243.84mmx304.8mm |
|
Hệ điều hành |
Hỗ trợ cho Windows® 11 64-bit, Windows® 10 64-bit |
