AMD Socket AM5 cho AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
Chipset AMD X870
RAM
4 x DIMM slots, tối đa 192GB, DDR5, hỗ trợ 8000+MT/s(OC) với Ryzen™ 9000, 8400+MT/s(OC) với Ryzen™ 8000, 8000+MT/s(OC) với Ryzen™ 7000
Đồ họa
1 x HDMI™ port, 2 x USB4® (40Gbps) ports hỗ trợ xuất hình qua USB Type-C®
Khe cắm mở rộng
1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot
Lưu trữ
Hỗ trợ 5 x M.2 slots và 4 x SATA 6Gb/s ports
Ethernet (LAN)
1 x Realtek 5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7, 2×2 Wi-Fi 7 (802.11be), Bluetooth® v5.4
USB
Rear: 2 x USB4® (40Gbps), 1 x USB 20Gbps, 10 x USB 10Gbps; Front: 1 x USB 20Gbps, 2 x USB 5Gbps headers (hỗ trợ thêm 4 cổng USB 5Gbps), 3 x USB 2.0 headers (hỗ trợ thêm 6 cổng USB 2.0)
Âm thanh
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

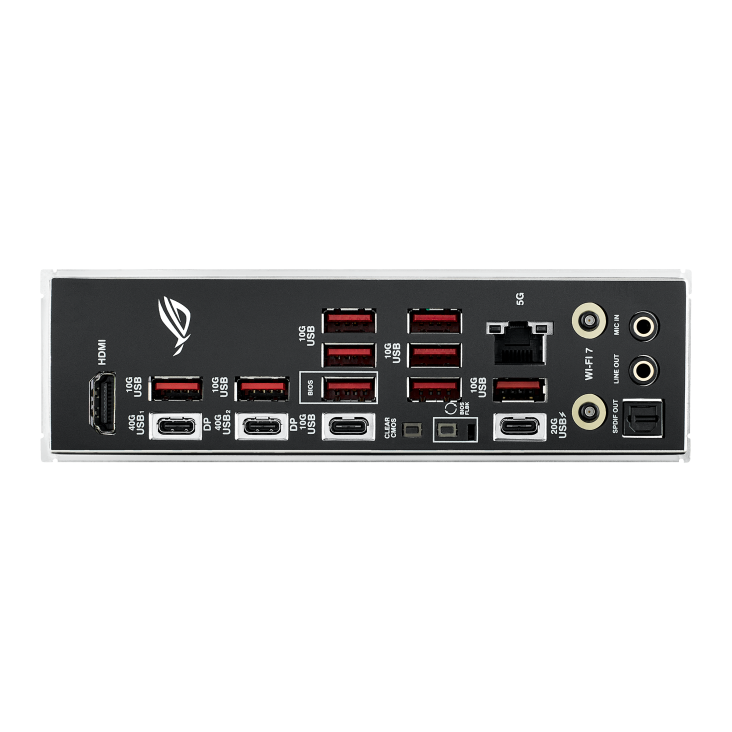

Back Panel I/O Ports
2 x USB4® (40Gbps), 1 x USB 20Gbps, 10 x USB 10Gbps, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Realtek 5Gb Ethernet, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers; Power: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors; Storage: 5 x M.2 slots (Key M), 4 x SATA 6Gb/s ports; USB: 1 x USB 20Gbps connector (hỗ trợ USB Type-C®), 2 x USB 5Gbps headers hỗ trợ thêm 4 cổng USB 5Gbps, 3 x USB 2.0 headers hỗ trợ thêm 6 cổng USB 2.0
Special Features
Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync
Software Features
ROG Exclusive Software, Armoury Crate, ASUS Exclusive Software, UEFI BIOS, AI Overclocking Guide, ASUS EZ DIY
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

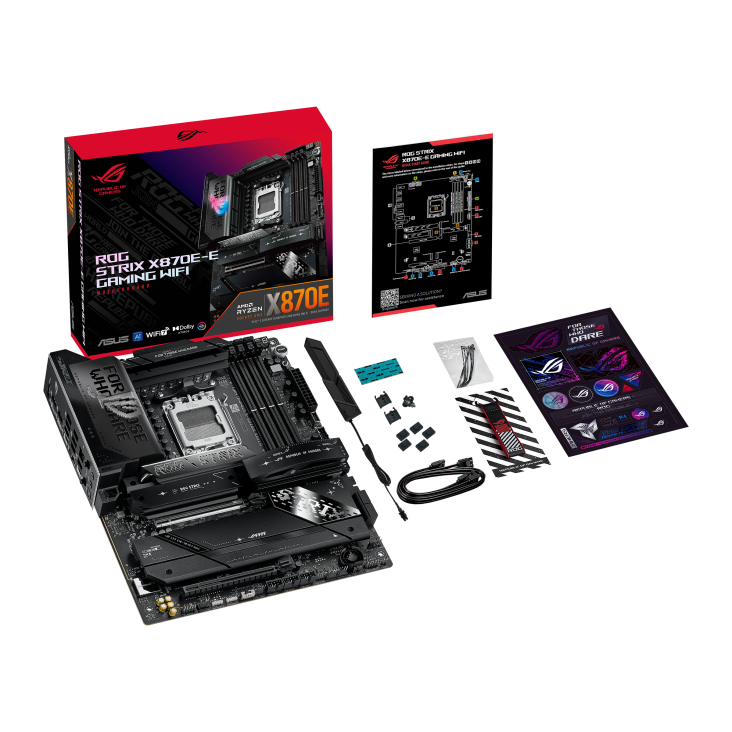

Accessories
Cables: 2 x SATA 6Gb/s cables; Additional Cooling Kit: 1 x Thermal pad for M.2 22110; Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties pack, 1 x M.2 Q-Latch package, 2 x M.2 Q-Slides, 1 x ROG key chain, 1 x ROG Strix stickers, 5 x M.2 Rubbers; Documentation: 1 x Quick start guide
Hệ điều hành
Windows® 11, Windows® 10 64-bit
Chuẩn kích thước
ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
