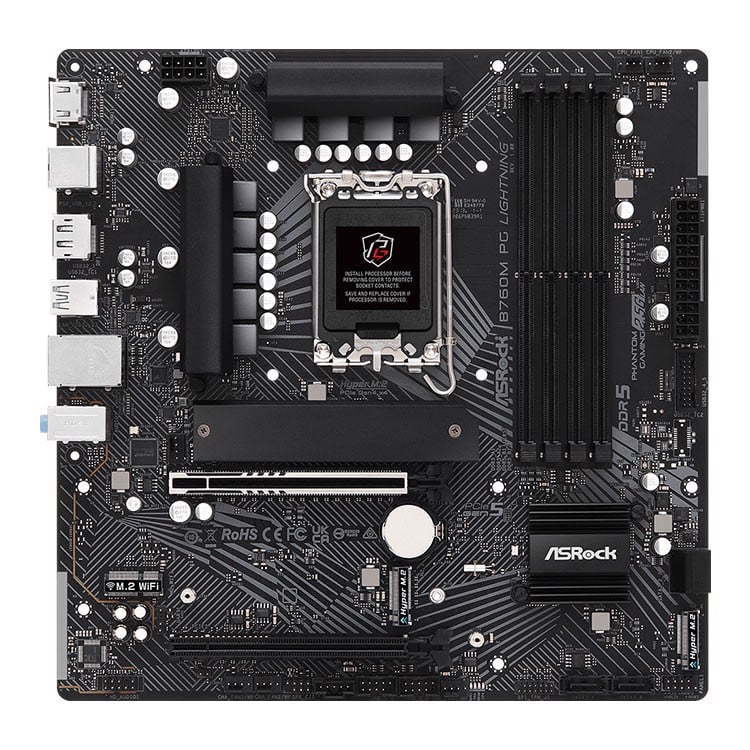

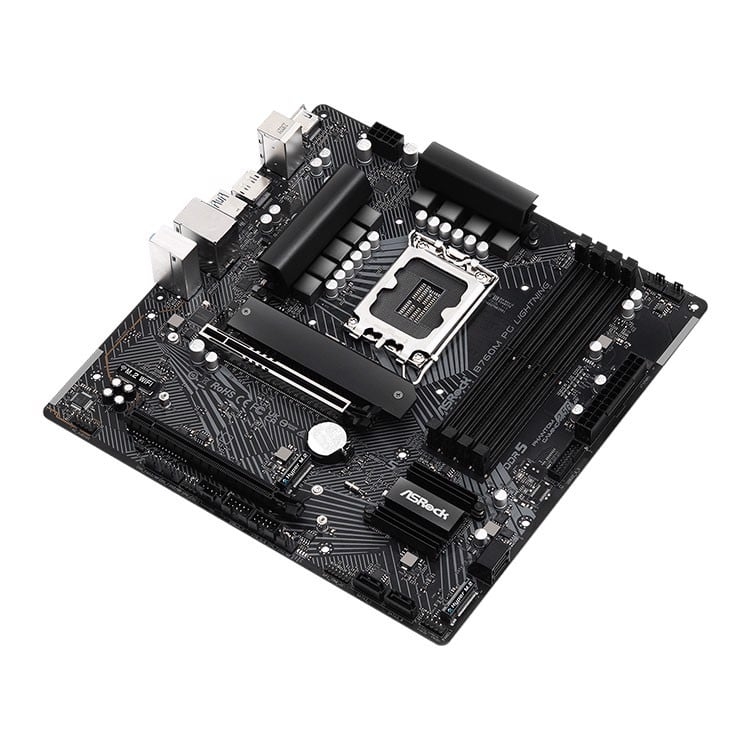

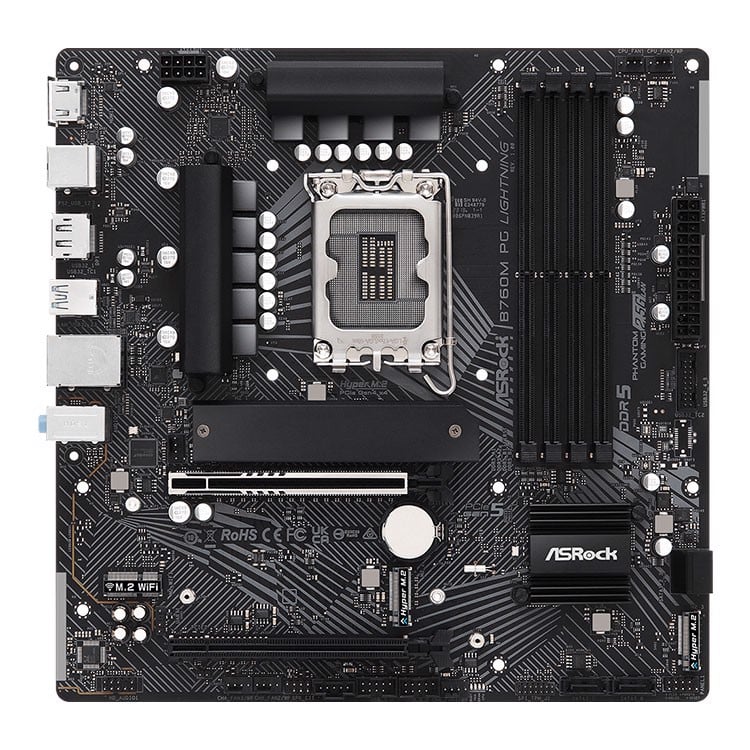

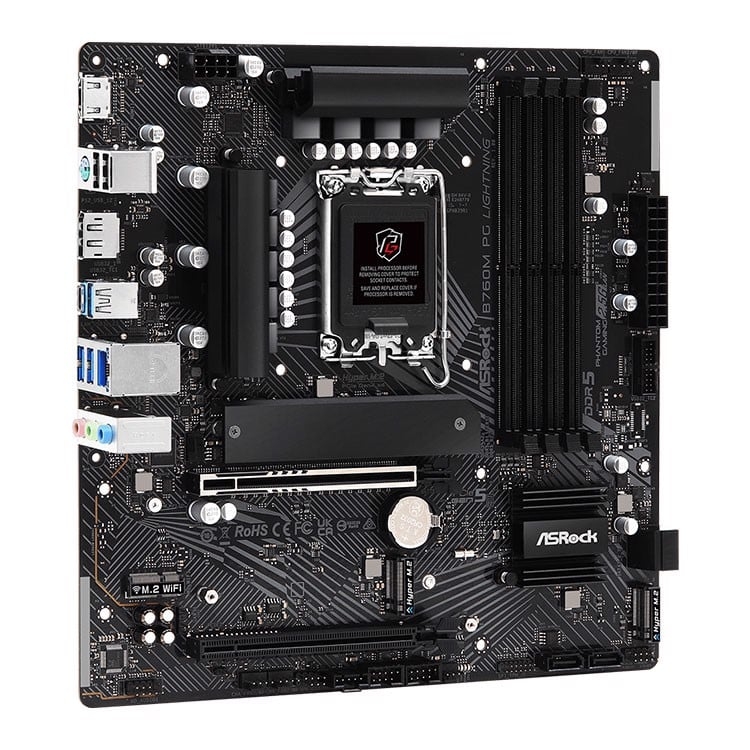

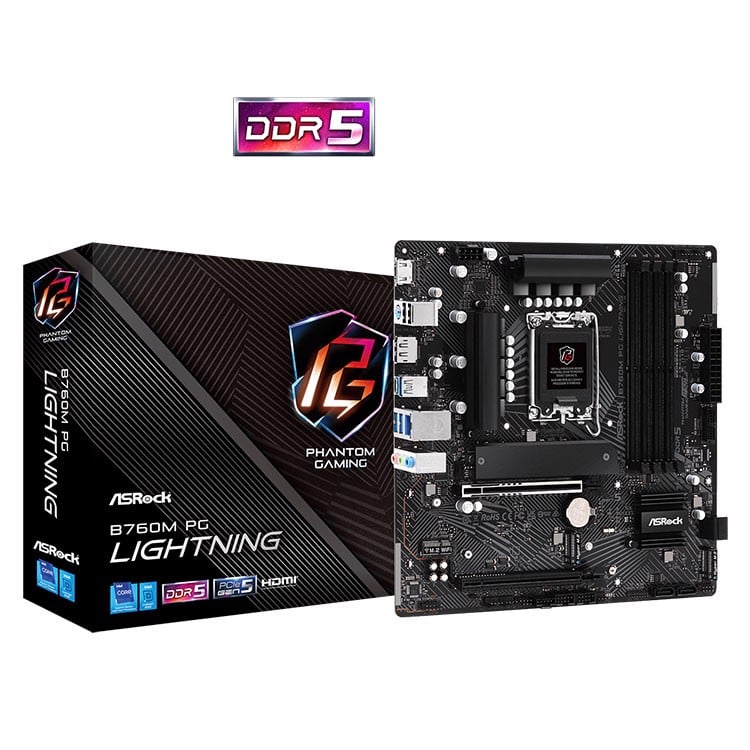

Mainboard ASRock B760M PG Lightning

Thương hiệu: ASROCK Mã SKU: Đang cập nhật

3.250.000₫

ƯU ĐÃI CÙNG MAYTECHVN

CAM KẾT GIÁ TỐT NHẤT, NẾU BẠN CÓ BÁO GIÁ TỐT HƠN VUI LÒNG LIÊN HỆ MAYTECHVN

Thông tin chung

Hãng sản xuất : Asrock
Bảo hành : 36 Tháng - chính hãng

Số lượng:

Gọi đặt mua 0834562103 (9:00 - 19h30)

Giao hàng miễn phí trong 3H (chỉ áp dụng khu vực nội thành)
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
Đổi trả miễn phí trong 30 ngày nếu có lỗi từ nhà sản xuất

ĐẶC ĐIỂM NỔI BẬT

ĐÁNH GIÁ CHI TIẾT SẢN PHẨM Mainboard ASRock B760M PG Lightning

Xem thêm

THÔNG SỐ KỸ THUẬT

Unique Feature	Superb Productivity
	- PCIe Gen5 (Graphics)
	- Dual Channel DDR5
	Rock-Solid Durability
	- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
	Ultrafast Connectivity
	- 2.5G LAN EZ Update
	- ASRock Auto Driver Installer
	EZ Troubleshooter
	- ASRock Post Status Checker
CPU	- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
	- Supports Intel® Hybrid Technology
	- Supports Intel® Turbo Boost Max 3.0 Technology
	- Supports Intel® Thermal Velocity Boost (TVB)
	- Supports Intel® Adaptive Boost Technology (ABT)
Chipset	- Intel® B760
Memory	- Dual Channel DDR5 Memory Technology
	- 4 x DDR5 DIMM Slots
	- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
	- Max. capacity of system memory: 192GB
	- Supports Intel® Extreme Memory Profile (XMP) 3.0
	*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
	1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
	2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
	2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics	- Intel® Xe Graphics Architecture (Gen 12)
	- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
	- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Audio	- Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
	- Dragon RTL8125BG
	- Supports Phantom Gaming LAN Software
	- Smart Auto Adjust Bandwidth Control
	- Visual User Friendly UI
	- Visual Network Usage Statistics
	- Optimized Default Setting for Game, Browser, and Streaming Modes
	- User Customized Priority Control
Slots	CPU:
	- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
	Chipset:
	- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
	- Supports AMD CrossFire™
Storage	CPU:
	- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
	Chipset:
	- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
	- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
	- 4 x SATA3 6.0 Gb/s Connectors
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	- 1 x USB 3.2 Gen1 Type-C (Rear)
	- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
	- 6 x USB 2.0 (2 Rear, 4 Front)
Connector	- 1 x SPI TPM Header
	- 1 x Chassis Intrusion and Speaker Header
	- 1 x CPU Fan Connector (4-pin)*
	- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
	- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
	- 1 x 24 pin ATX Power Connector
	- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
	- 1 x Front Panel Audio Connector
	- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
	- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
	- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

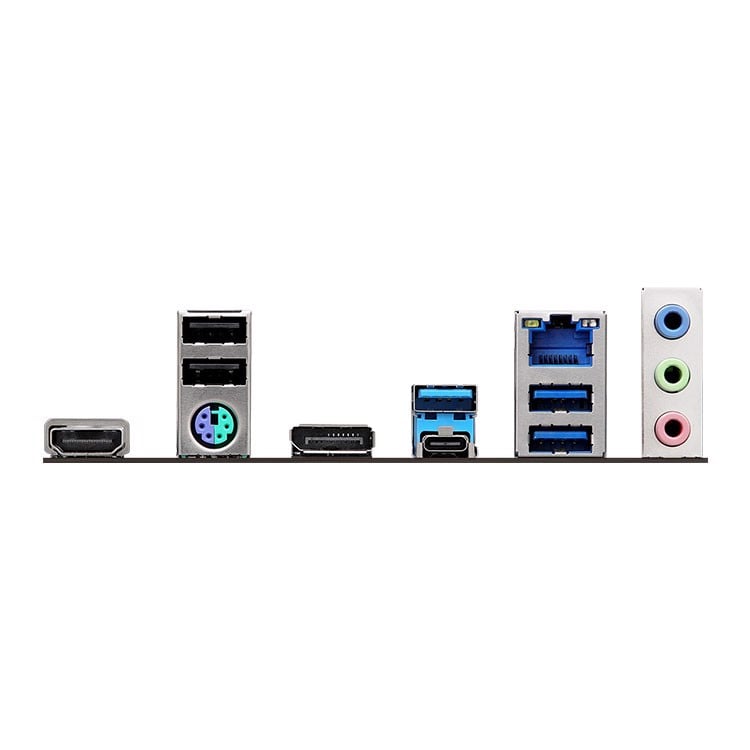

Rear Panel I/O	- 2 x Antenna Mounting Points
	- 1 x PS/2 Mouse/Keyboard Port
	- 1 x HDMI Port
	- 1 x DisplayPort 1.4
	- 1 x USB 3.2 Gen1 Type-C Port
	- 3 x USB 3.2 Gen1 Type-A Ports
	- 2 x USB 2.0 Ports
	- 1 x RJ-45 LAN Port
	- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software
	- ASRock Motherboard Utility (Phantom Gaming Tuning)
	- ASRock Phantom Gaming LAN Software*
	UEFI
	- ASRock EZ Mode
	- ASRock Full HD UEFI
	- ASRock My Favorites in UEFI
	- ASRock Auto Driver Installer
	- ASRock Instant Flash
	- ASRock Easy RAID Installer
Accessories	- 1 x User Manual
	- 1 x I/O Shield
	- 2 x SATA Data Cables
	- 4 x Screws for M.2 Sockets
	- 1 x Standoff for M.2 Socket
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS	- Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications	- FCC, CE
Certifications	- ErP/EuP ready (ErP/EuP ready power supply is required)
