565.2 x 327 x 599.2 mm
(22.25 x 12.87 x 23.59 inch)
NET WEIGHT
17.1 kg / 37.7 lbs.
PANEL
4mm Tempered Glass x 1
COLOR
White
MATERIAL
SPCC / ABS
COOLING SYSTEM
Front(intake):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Top(exhaust):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Rear(intake):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
DRIVE BAYS
7 x 3.5” or 12 x 2.5”
EXPANSION SLOTS
7
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O PORT
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Top:
1 x 240mm, 1 x 120mm
1 x 140mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Bottom:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
CLEARANCE
CPU cooler max height:
190mm
VGA max length:
370mm (With radiator)
420mm (Without radiator)
PSU max length:
220mm
565.2 x 327 x 599.2 mm
(22.25 x 12.87 x 23.59 inch)
NET WEIGHT
17.1 kg / 37.7 lbs.
PANEL
4mm Tempered Glass x 1
COLOR
White
MATERIAL
SPCC / ABS
COOLING SYSTEM
Front(intake):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Top(exhaust):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Rear(intake):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
DRIVE BAYS
7 x 3.5” or 12 x 2.5”
EXPANSION SLOTS
7
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O PORT
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Top:
1 x 240mm, 1 x 120mm
1 x 140mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Bottom:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
CLEARANCE
CPU cooler max height:
190mm
VGA max length:
370mm (With radiator)
420mm (Without radiator)
PSU max length:
220mm

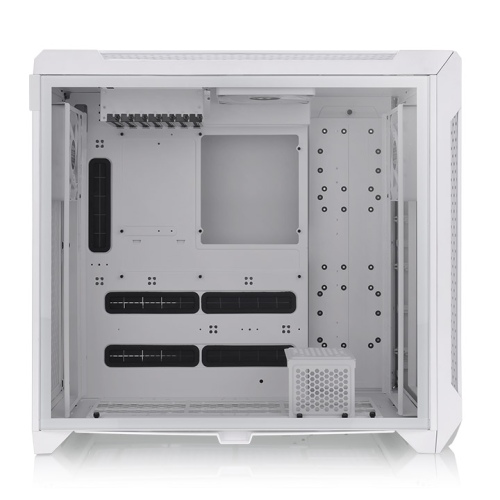

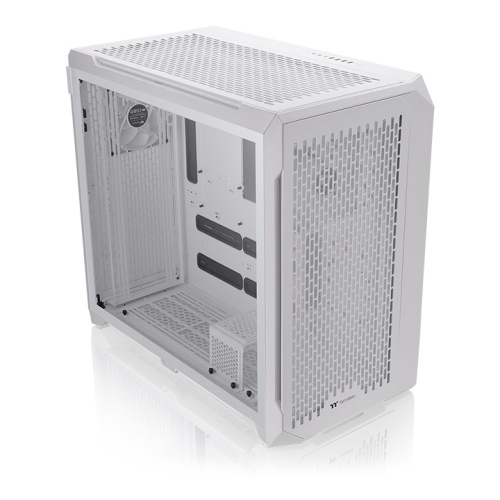

Case Thermaltake CTE C750 Air Snow Full Tower Chassis
