Nhà sản xuất

Asus

Model

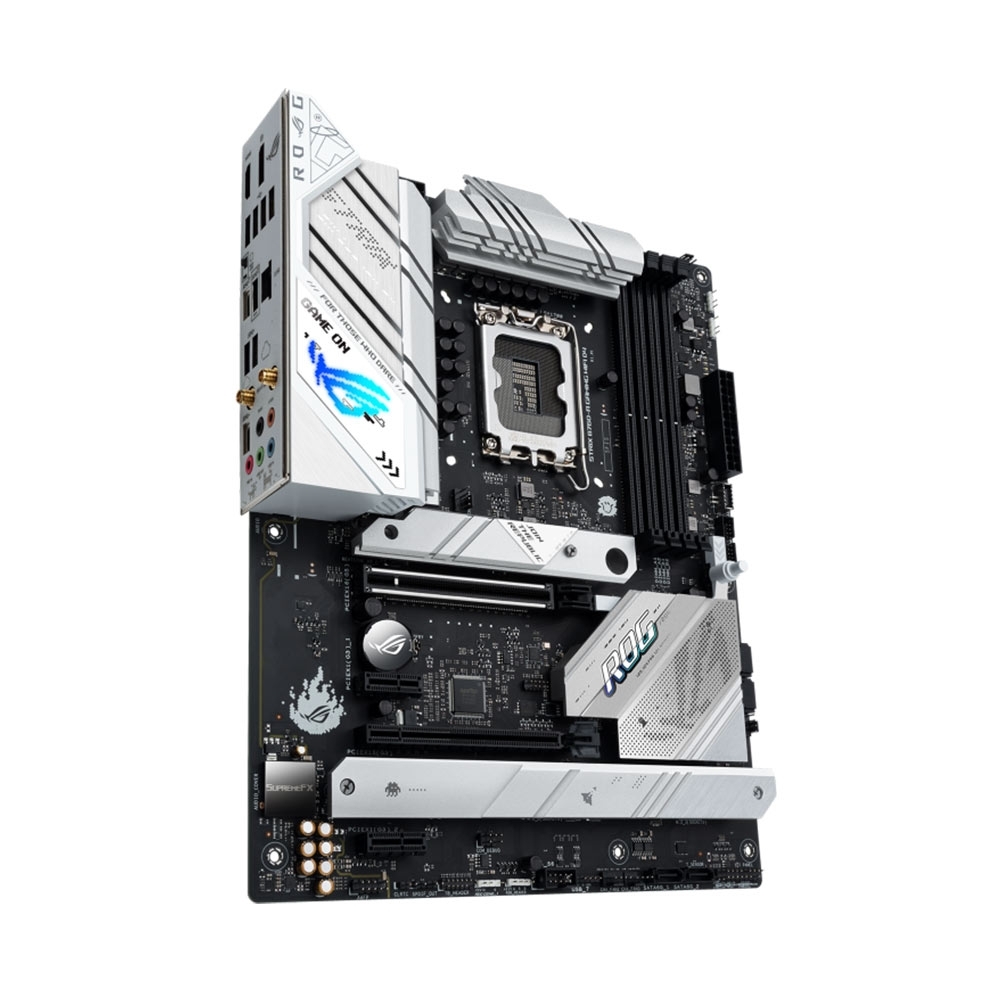

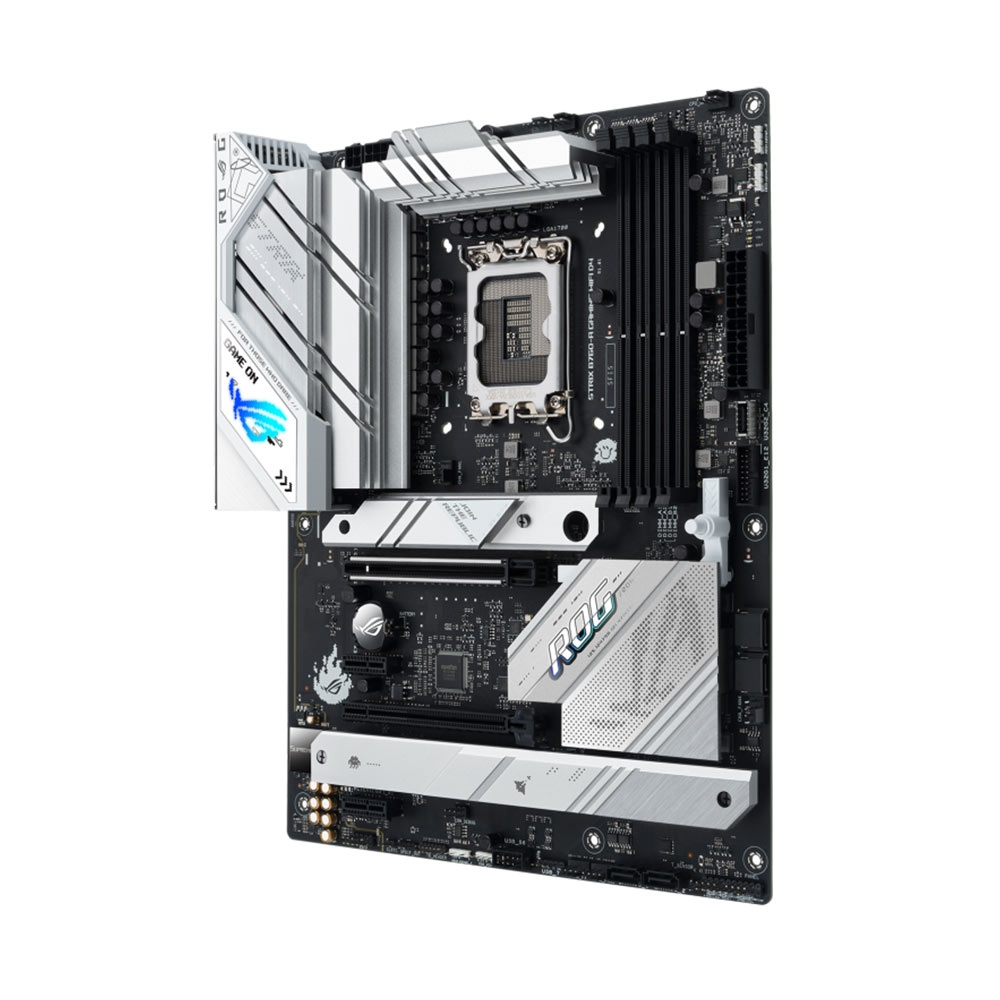

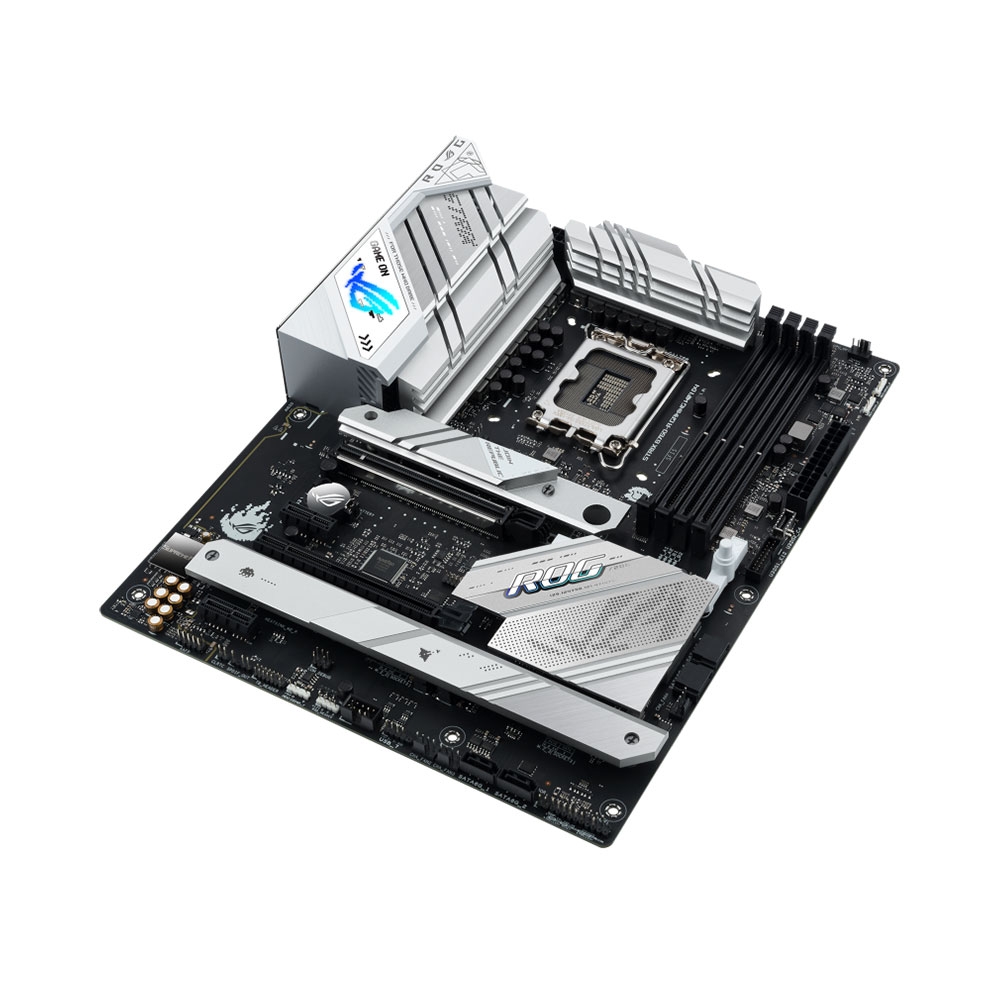

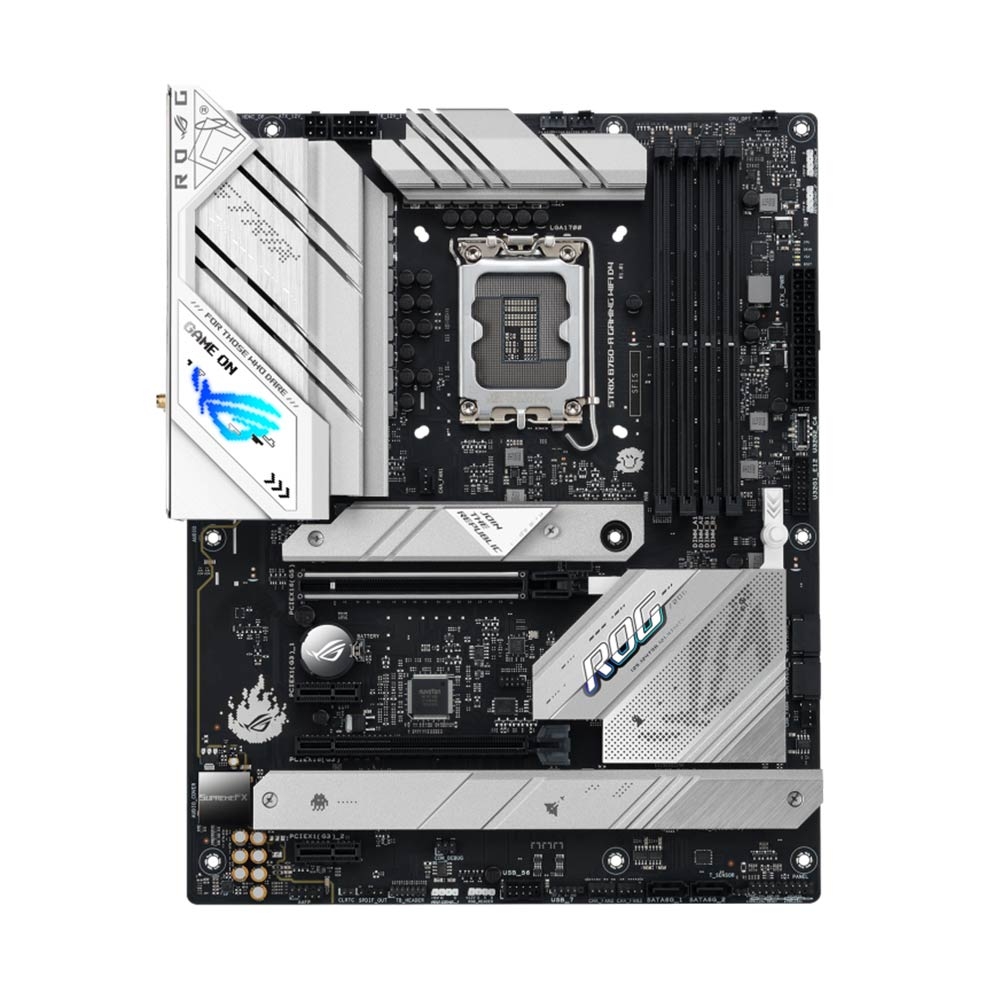

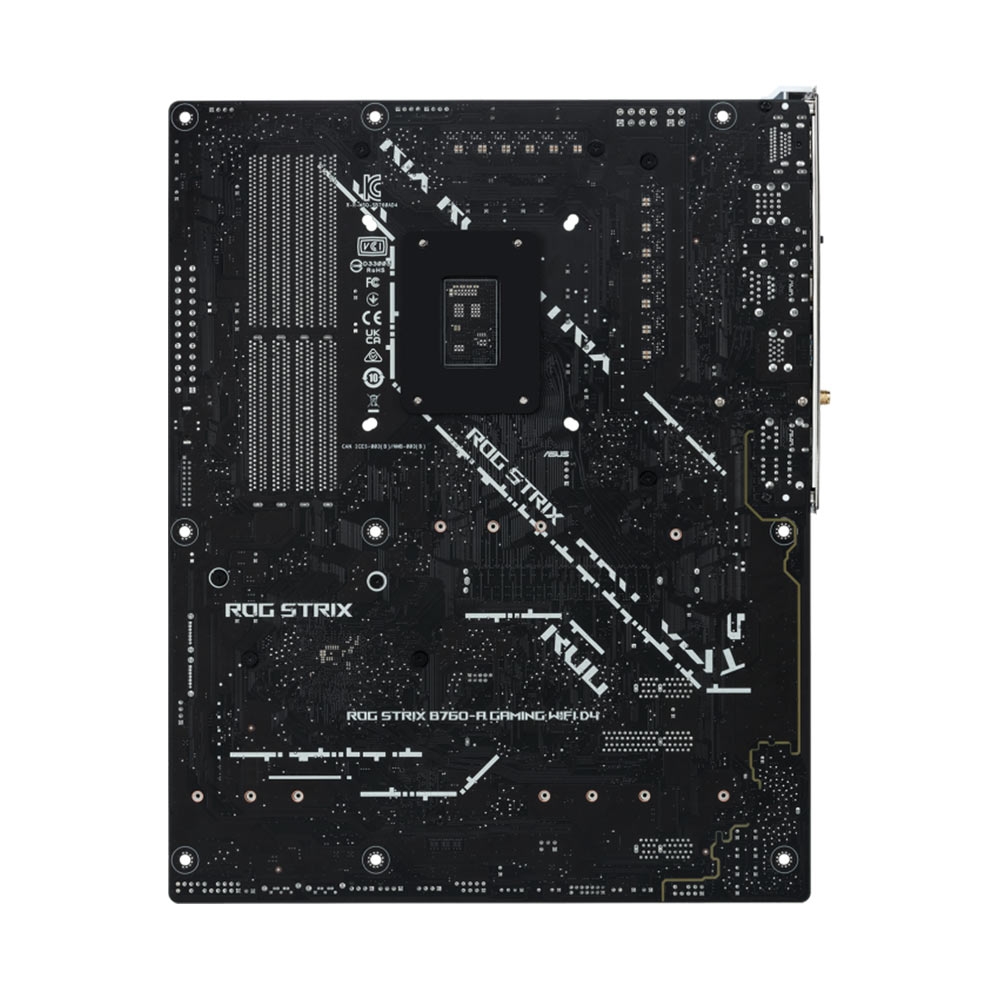

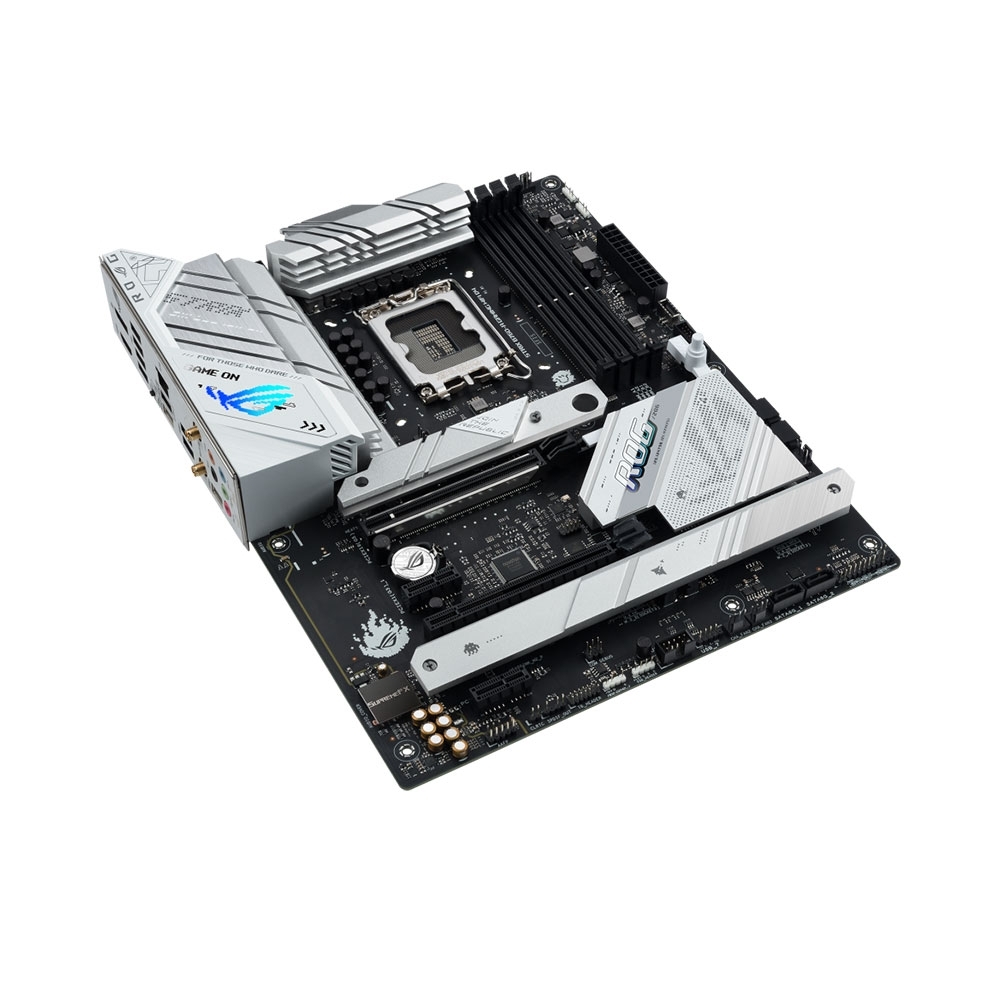

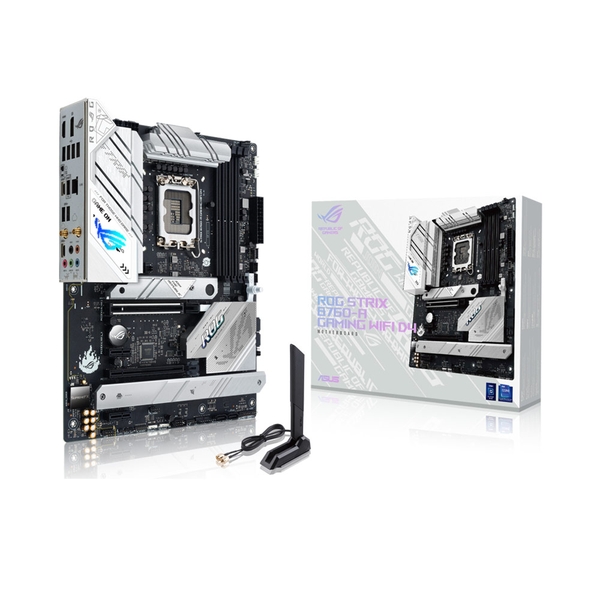

ROG-STRIX-B760-A-GAMING-WIFI-D4

CPU hỗ trợ

• Intel Core 12th/13th
• CPU Socket LGA1700

Chipset

B760

Hỗ trợ Ram

4 x DDR4 5333(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz (Maximum 128GB)

Khe cắm mở rộng

1 x PCIe 5.0 x16

1 x PCIe 3.0 x16

2 x PCIe 3.0 x1

Hỗ trợ ổ cứng

• 1 x M.2 2242/ 2260/ 2280/ 22110 PCIe 4.0 x4
• 2 x M.2 2242/ 2260/ 2280 PCIe 4.0 x4
• 4 x SATA 6Gbps

Support Raid 0, 1, 5, 10

LAN/ Wireless

• LAN: Intel 2.5Gb Ethernet ASUS LANGuard
• Wireless: 2x2 Intel Wi-Fi 6E + BT 5.3

Audio

ROG SupremeFX 7.1 Surround Sound

Cổng kết nối bên trong

Fan and Cooling

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 Type-C connector

1 x USB 3.2 Gen 1 header support 2 USB 3.2 Gen 1

1 x USB 2.0 header

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x 20-5 pin System Panel header

1 x Thunderbolt™ (USB4®) header

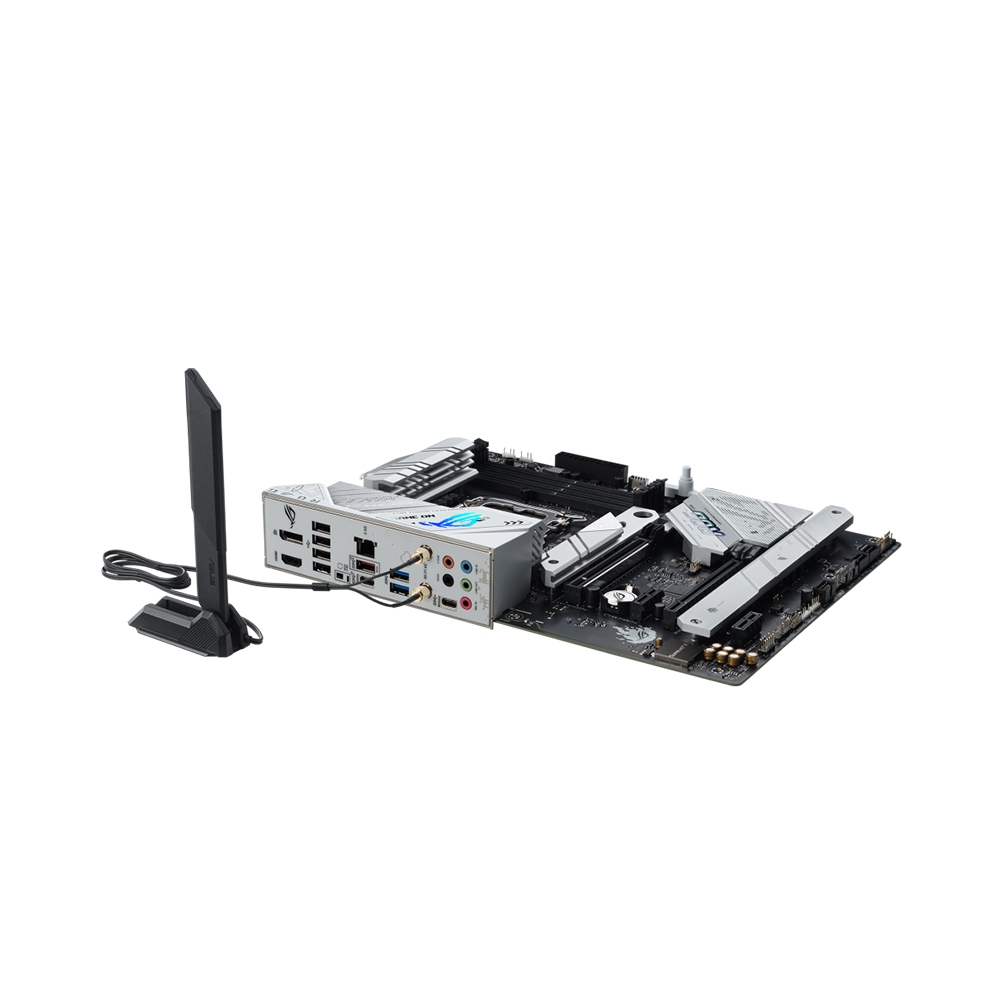

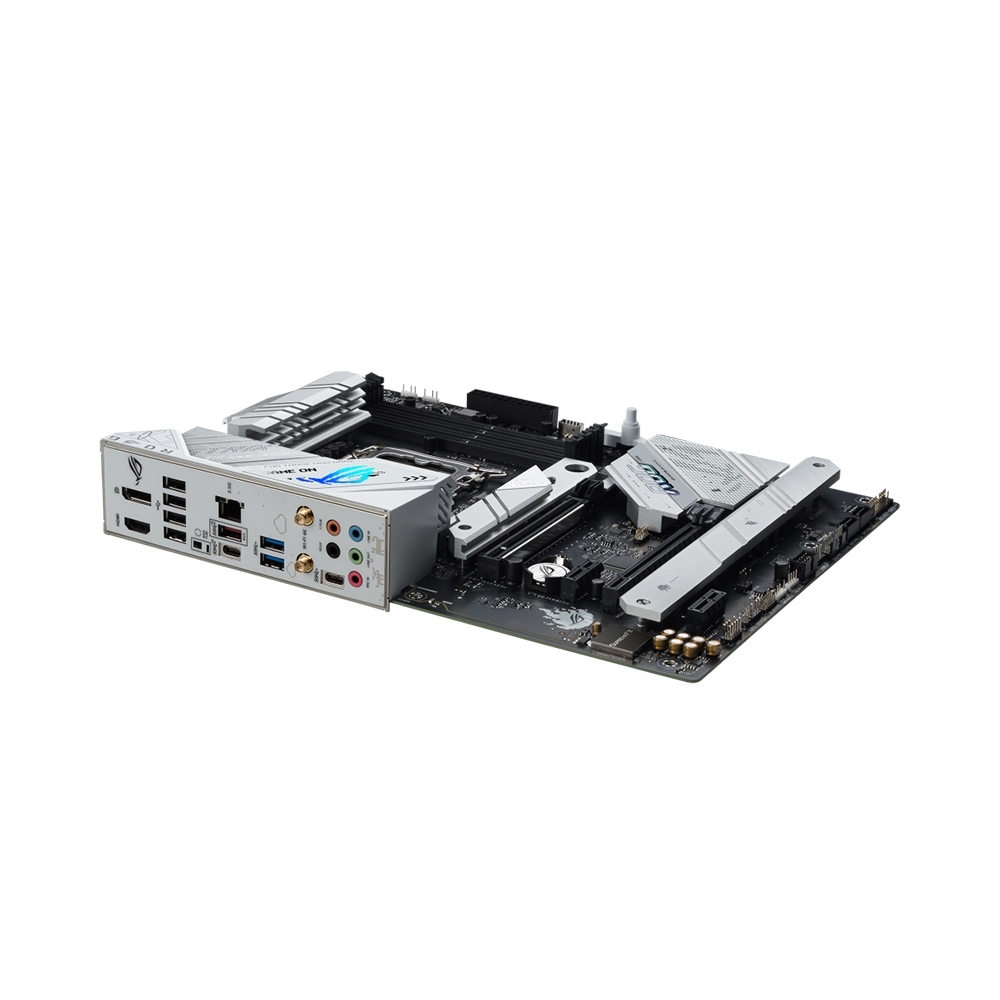

Cổng kết nối phía sau

1 x USB 3.2 Gen 2x2 Type-C port

1 x USB 3.2 Gen 2 Type-A port

2 x USB 3.2 Gen 1 Type-A ports

1 x USB 3.2 Gen 1 Type-C ports

4 x USB 2.0 ports

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™  button

Kiểu dáng

ATX (305 x 244 mm)

Bảo hành

3 năm
